We are at the forefront of transforming the future of solar energy, driving innovation and advancements.
PRODUCT SPECTRUM
Diesel Generator Solutions by Capacity
High-performance power generation engineered with electronic governing, optimal fuel consumption, and stringent CPCBIV+ compliance across all operating thresholds.
10 kVA – 35 kVA
01
Compact & Light Commercial
Designed for small commercial offices, retail shops, clinics, telecom towers, and residential complexes.
40 kVA – 82.5 kVA
02
Medium Commercial & Institutional
Engineered for educational institutions, bank branches, mid-sized hotels, fueling stations, and commercial showrooms.
125 kVA – 320 kVA
03
Heavy Commercial & Industrial
Built for hospitals, manufacturing plants, infrastructure projects, large commercial centers, and cold storage warehouses.
400 kVA – 650 kVA
04
High-Capacity Prime & Critical
Powered by Perkins engines for data centers, multi-speciality healthcare facilities, large-scale industrial complexes, and major construction sites.
Powertrain
ENGINEERING EXCELLENCE
Engine Architecture
- Lowest fuel consumption in its operational capacity bracket
- Heavy-duty dry-type air cleaner equipped with proactive service indicator
- Pre-filled with authentic OEM high-grade lube oil & heavy-duty engine coolant
- Equipped with high-torque Electrical Starter Motor for instantaneous starting
- Integrated with high-output battery charging alternator for uninterrupted readiness
Acoustic Shield
NOISE SUPPRESSION & PROTECTION
Acoustic Enclosure
- Engineered strictly to comply with MoEF / CPCB acoustic and emission norms
- Certified to operate in extreme climatic temperatures from -10°C to 55°C without external aids
- Long-lasting superlative fade-resistant polyurethane exterior paint finish
- Ergonomic draw-out type internal fuel tank for effortless preventative maintenance
- Fire-retardant acoustic insulation material (Rockwool / PU Foam) for maximum workplace safety
- Modular access panels providing rapid serviceability for technicians
- Comprehensive multi-stage pre-treatment with UV-resistant electrostatic powder coating
- Engine and alternator mounted securely on a rigid common base frame with Anti-Vibration Mounts (AVM)
Power Generation
ELECTRICAL POWER DYNAMICS
Brushless Alternator
- Brushless, screen-protected, drip-proof, self-excited, and self-regulated as per IS/IEC 60034-1 standards
- Extended industrial life cycle reinforced with superior Class 'H' thermal insulation
- Simplified maintenance with integrated components and outboard Exciter/Rotating Rectifier design
- Permanently sealed bearings engineered for minimum maintenance and extended longevity
10 kVA – 320 kVA
INTELLIGENT GENSET MANAGEMENT
Digital Controller (10 kVA – 320 kVA)
- GC Series with high-resolution full graphic LCD display featuring automatic back-lit power-save mode
- Dual-function operational flexibility: Auto (AMF, remote start/stop, cyclic) and Manual operating modes
- Precise True-RMS monitoring of 1-Phase and 3-Phase voltage & frequency for both mains and generator
- Automated programmable exercise mode (2 independent events) for pre-set automated start/stop cycles
- Continuous real-time safety monitoring via analog resistive sensors and fail-safe digital inputs
- Comprehensive telemetry totalizers (starts, hours, kWh, kVAh), 100-entry real-time clock (RTC) event log, PC configuration, and multi-level password protection against unauthorized tampering
400 kVA – 650 kVA
CRITICAL INFRASTRUCTURE GRADE
DSE Controller (400 kVA – 650 kVA)
Key Features
- 4-line high-visibility back-lit LCD graphical interface
- 9 configurable digital/analog inputs & 8 customizable outputs
- Tri-stage maintenance tracking & comprehensive alternator fault protection alarms
- Electronic manual speed control compatible with CAN-bus electronic engines
- Multi-protocol integration: USB, RS232, RS485, SCADA connectivity, and SMS alert controls
- Built-in intelligent static battery charger safeguarding battery cycle health
Key Benefits
- User-configurable scheduled preventative maintenance periods
- Ethernet-based remote plant telemetry via DSE855 gateway
- Direct high-level Building Management System (BMS) integration
- Built-in internal PLC logic editor for specialized client automation
DISTRIBUTION & SWITCHGEAR
Control Panel & Accessories
Heavy-gauge powder-coated control panel engineered for complete weather-proof outdoor resilience and certified protection:
- High-conductivity power cables & tin-plated copper busbars with generous terminal clearances
- Front-panel status indicator lamps denoting 'Load on' and 'Set Running' status
- Automatic dual-rate battery charger (1 x 12V / 24V DC)
- Class-tested HRC fuses / MCBs safeguarding all control and sensor circuitry
- Molded Case Circuit Breaker (MCCB) of appropriate rating featuring thermal-magnetic trip protection
Optional Accessories & Upgrades
- Cold starting heating kit for sub-zero emergency operations
- PMG alternator auxiliary excitation, space heaters & RTD/BTD thermal sensors
- Automatic Mains Failure (AMF) panels, Auto Transfer Switches (ATS) & Auto-Synchronizing panels
- Remote Monitoring System (RMS) telematics available from 10 kVA onwards
IoT Cloud Telematics
TELEMETRY & FLEET LOGISTICS
Remote Monitoring System (RMS)
- Standard scope above 75 kVA incorporating IoT connectivity for 24/7 continuous telemetry monitoring of running hours, engine health, RPM, and live diagnostic fault logs via mobile app and web portals
- Facilitates centralized oversight of solitary DG sets or distributed enterprise generator fleets from anywhere in real-time
- Configurable as an optional field-upgrade for all lower capacity generators
Smart Generator Management Solutions
- Automated preventative alerts for vital A-Check & B-Check service intervals
- Tailored operational schedules minimizing unplanned enterprise downtime
- Predictive maintenance analytics safeguarding equipment operational lifecycle
- High-precision fuel logging per fill event ensuring audit accountability and theft deterrence
- Fuel burn rate pattern analysis identifying operating load inefficiencies
- End-to-end operational transparency via full digital fuel traceability

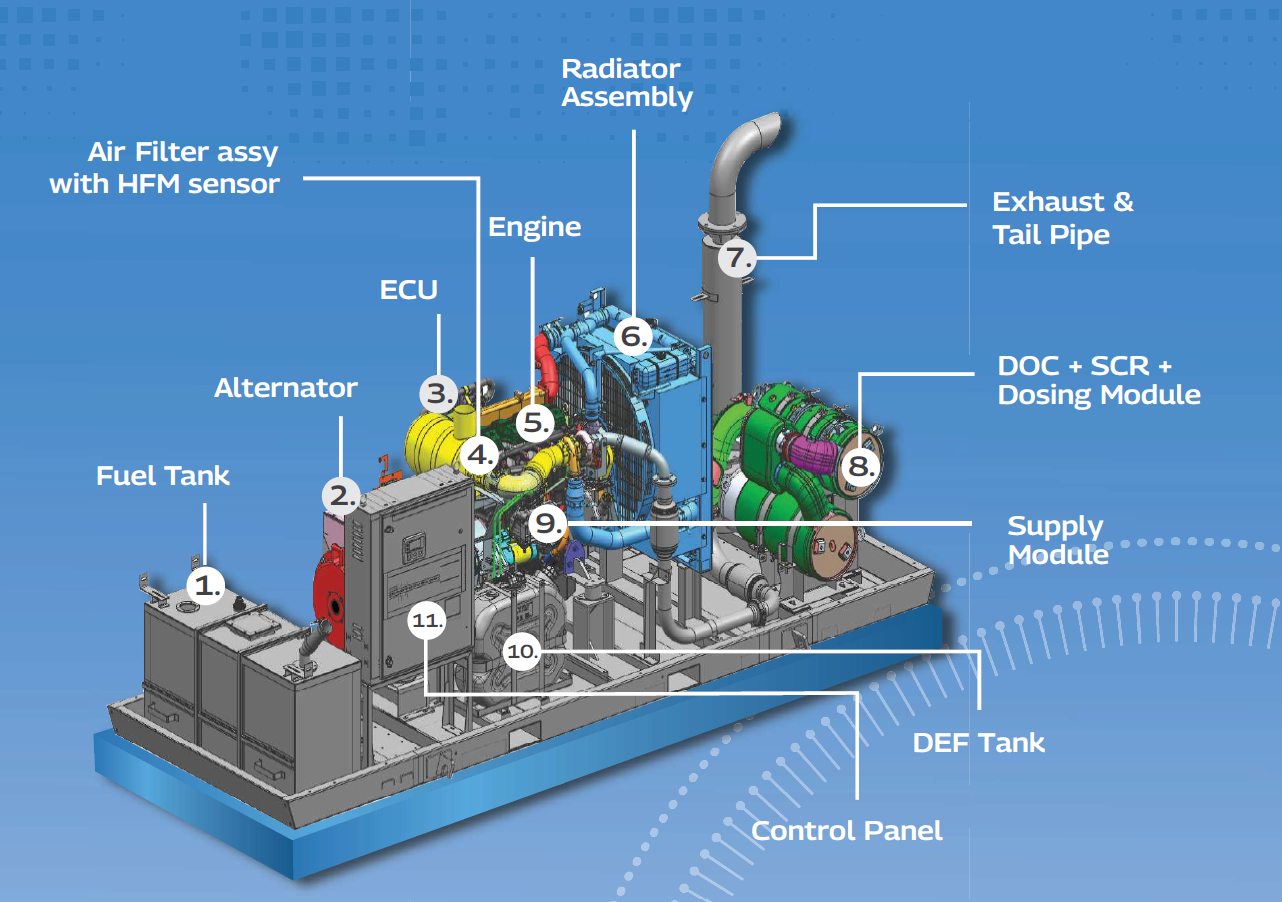

Genset Architecture
SYSTEM TOPOLOGY
Key Components
Modular layout engineered for maximum heat dissipation, simplified maintenance access, and optimal component longevity:
1
Fuel Tank
2
Alternator
3
ECU
4
Air Filter assy with HFM sensor
5
Engine
6
Radiator Assembly
7
Exhaust & Tail Pipe
8
DOC + SCR + Dosing Module
9
Supply Module
10
DEF Tank
11
Control Panel
